DC Microgrids: The next step in energy evolution

The evolution of energy systems is critical as we strive to meet increasing energy demands while addressing environmental challenges. Direct current (DC) microgrids are emerging as a transformative solution among the promising advancements. The number of DC loads has skyrocketed with the growing popularity of electric vehicles (EVs), solid-state lighting (SSL), and the Internet of Things (IoT). DC microgrids represent a step forward in achieving a sustainable and resilient energy future by enabling localized energy generation, distribution, and management.
What Is a DC Microgrid?
A DC microgrid is a localized electrical system that operates primarily on direct current. Unlike traditional alternating current (AC) grids, DC microgrids simplify energy management by reducing conversion losses and enhancing compatibility with modern technologies. These systems are typically self-contained and can operate independently (islanded mode) or with a larger grid (grid-connected mode).
Key Components of a DC Microgrid

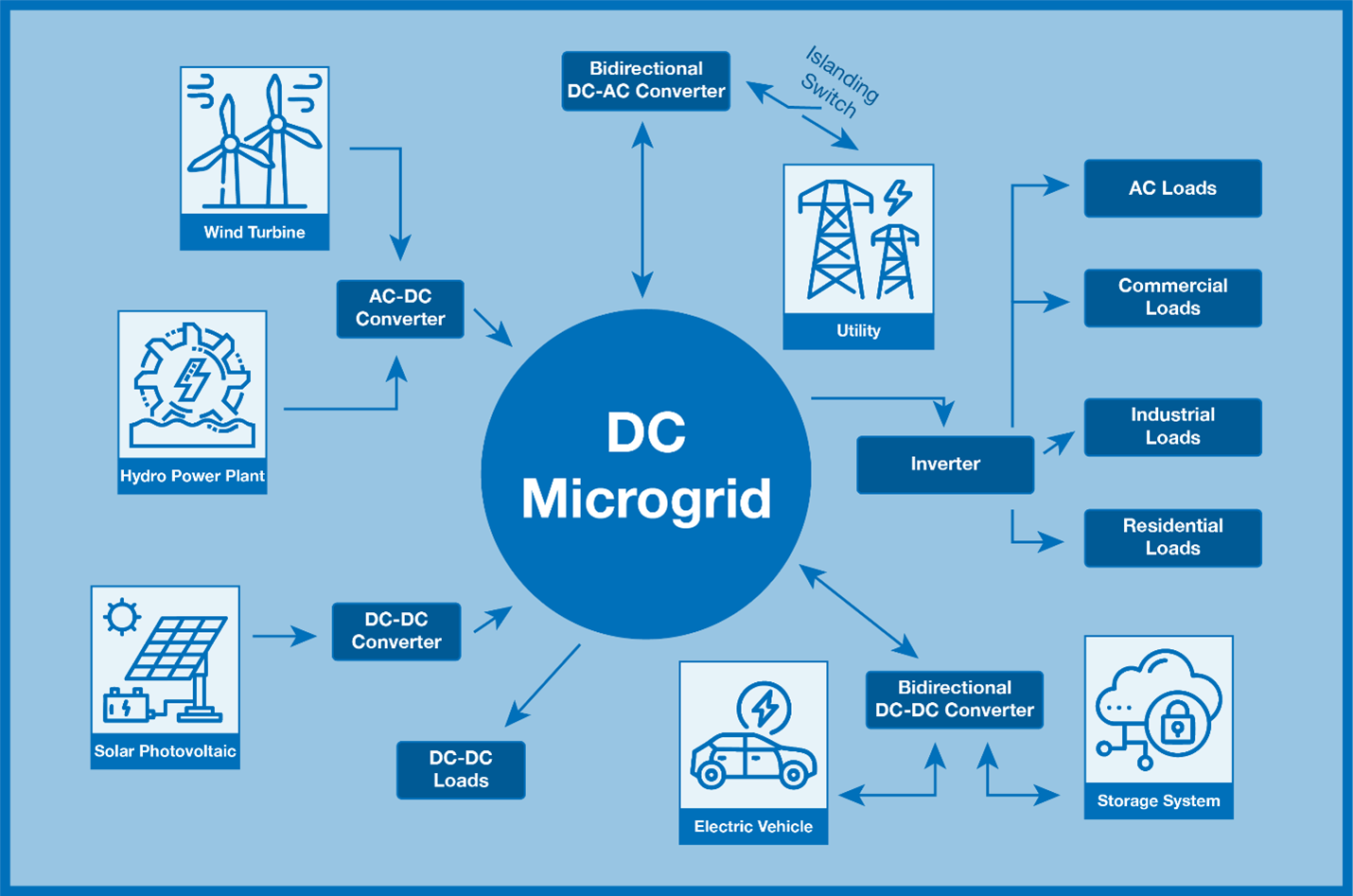

While variations exist between DC microgrids, each includes the following components and systems (Figure 1):
- Power sources: Sources of power generation — also known as distribution generation (DG) — include solar photovoltaic (PV) panels, wind turbines, small hydropower plants, diesel generators, and other renewable energy generators.
- Energy storage systems (ESSs): These devices convert electrical energy into a storable form and convert it back to electricity when needed. DC microgrids use batteries, supercapacitors, and flywheels to provide a continuous power supply and manage the supply-demand balance during DG operation.
- Loads: Loads refer to energy consumed by customers and can include industrial, commercial, residential, or other energy-consuming units in the distribution system.
- Control systems: Advanced software and hardware manage energy flow, maintain stability, and ensure efficient operation.
- Inverters: Inverters are essential devices that convert DC power into AC power, facilitating the integration of commercial, residential, industrial, and AC loads into the DC bus.
- Bidirectional converters: These converters control the power transferred from the DC microgrid to the utility grid and power storage systems.
Types of DC Microgrids
DC microgrids can be categorized based on their configuration and application:
- Residential: These systems integrate rooftop solar panels, battery storage, and energy-efficient DC appliances into homes. They reduce dependence on the central grid and lower energy costs.
- Commercial and industrial: Ideal for businesses and factories, these microgrids provide stable power for operations. Data centers, for instance, benefit from direct integration with renewable sources, minimizing energy losses from AC-DC conversions.
- Remote and off-grid: These systems are essential for areas without grid access, such as rural or island communities. They rely on local renewable resources to ensure energy availability.
- Transportation: These microgrids support EV charging stations and public transit systems. They enhance efficiency by directly powering DC-compatible EVs.
- Military and emergency: Critical for defense operations and disaster recovery, these microgrids offer reliable and resilient power in isolated conditions.
DC Microgrid Operation and Control
DC microgrids have the potential to change the industry as we know it. By decentralizing storage and power generation and decreasing the number of energy conversion stages, DC microgrids minimize energy losses and enhance operational efficiency.
The efficient operation of a DC microgrid depends on its control systems, which are designed to manage energy dynamically and ensure reliability. Energy balancing is crucial, as it matches generation with demand in real time, often leveraging storage systems to accommodate peak usage or compensate for low generation periods. Voltage regulation is another key aspect, maintaining stable voltage levels despite fluctuating loads and generation, often achieved using DC-DC converters. Fault management is vital in identifying and isolating faults to prevent system-wide disruptions, and it is supported by robust protection mechanisms.
Energy optimization prioritizes renewable sources over fossil fuels and minimizes energy losses through advanced control strategies. Lastly, communication and monitoring systems that employ smart sensors and IoT devices enable real-time data collection and advanced analytics to predict and prevent system failures.
DC Microgrid Benefits
According to the International Energy Agency (IEA), the industrial sector represented approximately 37% of all energy use worldwide in 2022.1 Rising energy costs and the push to decarbonize energy production sources and end-use technologies put increasing pressure on users and energy producers. A 2018 study conducted by Cronimet Corporation highlighted a hybrid power plant using 1MW of solar power that saved US$500,000 and 450,000 litres of diesel annually.2
DC microgrids offer a wide range of benefits across different sectors. Households can reduce electricity costs and carbon footprints using renewable energy and energy-efficient appliances. Businesses gain energy independence and cost savings while enhancing operational reliability. Rural communities benefit from stable electricity access, which fosters economic growth and improves quality of life. Healthcare facilities rely on uninterrupted power for critical operations and equipment, while educational institutions can promote sustainability and energy education through on-campus microgrids.
Integrating DC Microgrids into the Power Grid
A DC microgrid consists of various power generators and energy buffers, such as ultracapacitors and fuel cells. Different configurations of power electronic converters can be used to interface the common DC bus bar to the power generation resources. Fuel cells use a unidirectional DC-DC converter, while ultracapacitors require a bidirectional DC-DC converter. The efficiency of the DC microgrid will depend on the efficiency of these converters.
Seamless integration of DC microgrids with the larger power grid is essential for maximizing their potential. The impacts of climate change have heightened the severity and frequency of natural disasters and extreme weather occurrences.3 Consequently, both commercial and residential sectors have come to understand the significance of achieving energy autonomy. A facility that incorporates a DC microgrid alongside a renewable energy source can function independently as an energy island, detaching from the main grid until the emergency situation has subsided.
Islanding Capability
One of the key features of DC microgrids is their ability to operate autonomously or in an island mode — that is, disconnected from the commercial grid. In a disruption or grid outage, DC microgrids transition to island mode and ensure critical loads within the microgrid’s network receive an uninterrupted power supply. Islanding capabilities increase overall system reliability and enhance the resilience of manufacturing operations.
Meeting Climate Goals with DC Microgrids
DC microgrids play a pivotal role in achieving global climate objectives. Integrating renewable energy sources and minimizing energy losses significantly reduces greenhouse gas emissions. Microgrids enhance energy efficiency by directly using DC power, eliminating the need for multiple conversions and conserving resources. They also promote the adoption of renewable energy by making it easier to deploy solar, wind, and other renewable sources in urban and remote areas.
Furthermore, their decentralized and flexible design makes DC microgrids less vulnerable to natural disasters and grid failures, ensuring reliable power supply. These attributes position DC microgrids as a critical component in building a sustainable, climate-friendly energy future.
Conclusion
DC microgrids represent a crucial innovation in the journey toward sustainable energy systems. Their ability to integrate renewable energy, enhance efficiency, and support grid resilience makes them indispensable to energy transition. As we face environmental and energy challenges, embracing DC microgrids can help pave the way for a cleaner, more sustainable, and equitable energy future.
Sources:
[1]https://www.iea.org/energy-system/industry
[2]https://www.bgr.bund.de/DERA/DE/Downloads/pdac_2014_cronimet_armstrong.pdf?__blob=publicationFile&v=2
[3]https://www.eea.europa.eu/en/topics/in-depth/extreme-weather-floods-droughts-and-heatwaves
