An extra layer for perovskite–silicon tandem solar cells


Wednesday, 03 August, 2022

An extra layer for perovskite–silicon tandem solar cells

Researchers from the King Abdullah University of Science and Technology (KAUST) have discovered that inserting a metal fluoride layer in multilayered perovskite–silicon tandem solar cells can stall charge recombination and enhance performance, with their results published in the journal Science.

Tandem solar cells that combine perovskite and silicon-based subcells in one device are expected to better capture and convert sunlight into electricity than their conventional single-junction silicon analogues at a lower cost. However, when sunlight strikes the perovskite subcell, the resulting pairs of electrons and positively charged holes tend to recombine at the interface between perovskite and the electron-transport layer. Also, a mismatch between energy levels at this interface hinders electron separation within the cell. Cumulatively, these problems lower the maximum operating voltage available, or open-circuit voltage, of the tandem cells and limit device performance.

These performance issues can partially be solved by introducing a lithium fluoride layer between the perovskite and electron-transport layer, which usually comprises the electron-acceptor fullerene (C60). However, lithium salts readily liquefy and diffuse through surfaces, which makes the devices unstable.

“None of the devices have passed the standard test protocols of the International Electrotechnical Commission, prompting us to create an alternative,” said KAUST postdoc Jiang Liu, lead author on the new study.

Liu and co-workers systematically investigated the potential of other metal fluorides, such as magnesium fluoride, as interlayer materials at the perovskite/C60 interface of tandem cells. They thermally evaporated the metal fluorides on the perovskite layer to form an ultrathin uniform film with controlled thickness before adding C60 and top contact components. The interlayers are also highly transparent and stable, in line with the inverted p-i-n solar cell requirements.

The magnesium fluoride interlayer effectively promoted electron extraction from the perovskite active layer while displacing C60 from the perovskite surface. This reduced charge recombination at the interface, while enhancing charge transport across the subcell. The resulting tandem solar cell achieved a 50 mV increase in its open-current voltage and a certified stabilised power conversion efficiency of 29.3% — one of the highest efficiencies for perovskite–silicon tandem cells, according to Liu.

“Considering that the best efficiency is 26.7% for mainstream crystalline silicon-based single-junction cells, this innovative technology could bring considerable performance gains without adding to the cost of fabrication,” Liu said.

To further explore the applicability of this technology, the team is developing scalable methods to produce industrial-scale perovskite–silicon tandem cells with areas exceeding 200 cm2. “We are also developing several strategies to obtain highly stable tandem devices that will pass the critical industrial stability protocols,” Liu said.

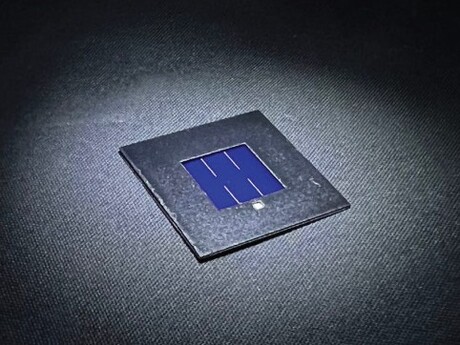

Image caption: Considerable performance gains in perovskite–silicon tandem solar cells such as this one can be achieved by adding a magnesium fluoride interlayer. Image ©2022 KAUST; Erkan Aydin.
