Digilent ADP2440 and ADP2450 mixed signal oscilloscopes

Click2Contact

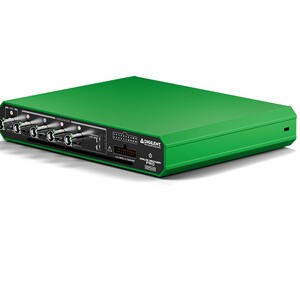

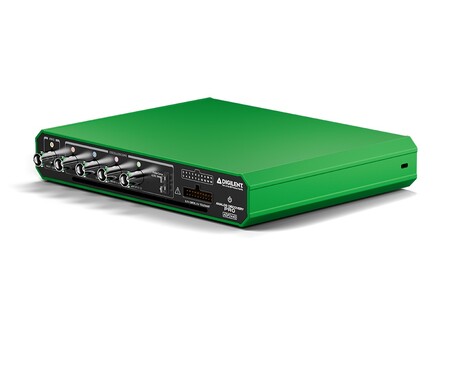

The Digilent ADP2440 and ADP2450 USB based mixed signal oscilloscopes are designed for modern prototyping, research and validation. Both oscilloscopes feature four analog channels, 16 digital I/O, integrated arbitrary waveform generator and WaveForms software. Users can select a higher resolution or higher bandwidth depending on their signals.

The ADP2440 oscilloscope features four 12-bit analog channels with 100+ MHz bandwidth, up to 600 MS/s.

The ADP2450 oscilloscope comes with four 8-bit analog channels with 200+ MHz bandwidth, up to 1 GS/s.

Both devices feature one 14-bit AWG with 15 MHz bandwidth and free WaveForms integration with FFT, Bode Plot, Eye Diagram, custom Math, extensive API and much more.

A freely allocatable deep buffer memory is shared between analog and digital systems, thereby enabling the acquisition of hundreds of millions of samples. The mixed signal oscilloscopes also facilitate memory segmentation, with approximately 1 µs re-arm latency for efficient capture of repeated or burst events. The devices feature USB 3.2 (5 Gbps) for responsive streaming and long captures.

Users can also operate two devices as one synchronised system via BNC triggers with automatic phase alignment, 8 analog inputs, 32 digital I/O, 2 AWGs, coordinated internal and external triggering across instruments, and easy alignment with the DIN rail mounting holes.

The ADP2440 and ADP2450 mixed signal oscilloscopes will be launched on 16 March 2026. For more information, click here.
