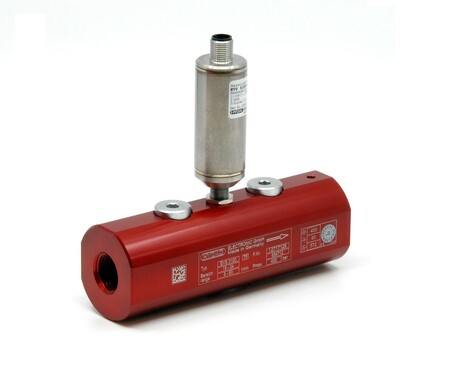

HYDAC EVS 3108-H electronic flow rate transmitter

Click2Contact

The HYDAC EVS 3108-H electronic flow rate transmitter is a high-performance flow monitoring solution designed to measure hydraulic oil flow in mobile and industrial applications. Operating on the proven turbine principle, the HIS-sensor measures the rotational speed of an impeller within the fluid and converts it into a precise electronic signal for flow measurement.

Equipped with HYDAC Sensor Interface (HSI) technology, the flow rate transmitter is automatically recognised by compatible HYDAC measuring instruments, including the HMG 500, HMG 510, HMG 3000, HMG 3010 and CMU 1000. This enables automatic sensor identification, power supply and transfer of measuring range, measured values and engineering units, reducing setup time and minimising the risk of configuration errors.

Designed for demanding hydraulic systems, the flow rate transmitter supports fluids with viscosities from 1 to 100 cSt and offers optional connections for pressure and temperature transmitters, allowing multiple process variables to be monitored from a single installation point. With its robust construction and seamless integration with HYDAC diagnostic equipment, the EVS 3108-H provides an efficient solution for hydraulic system monitoring, commissioning and maintenance.
