Hammond Electronics 1554 and 1555 polycarbonate enclosures

Click2Contact

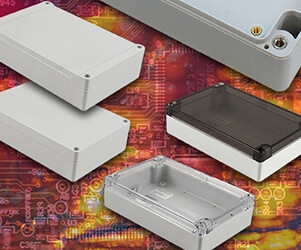

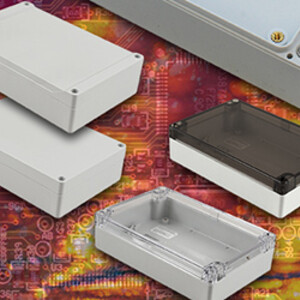

Hammond Electronics has added reduced height sizes to its IP68 sealed, UL listed 1554, 1555 and 1555F polycarbonate enclosures.

The 1554 and 1555 UL listed polycarbonate enclosure families offer IP68 (NEMA Type 4, 4X, 6, 6P, 12 and 13) environmental sealing and an IK08 impact rating. A further 10 sizes of shallow enclosures have also been added: the F, 120 x 90 mm; the N, 120 x 120 mm, and the R, 160 x 160 mm are available with heights of 45 and 61 mm.

The U size, 200 x 120 mm, is available in heights of 17 and 42 mm. All 1554 and 1555 plan sizes are available with plain, styled, clear and smoked lids. The 1555F range has a flanged lid to facilitate surface mounting and the base is styled to accept membrane keypads and other components.

The enclosures come with optical 1.6 mm galvanised steel panels for all sizes for mounting heavier components. Internal DIN rail mounting tabs are also moulded into most sizes, with vertical PCB guides in all but the smallest A and B sizes. The enclosures also feature M3 threaded brass inserts and/or standoffs for PCB or inner panel mounting in all but the smallest B size.
