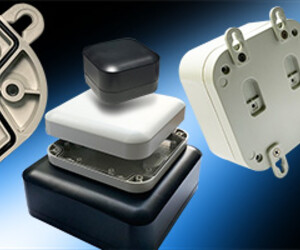

Hammond Electronics 1557 IP68 polycarbonate enclosures

Click2Contact

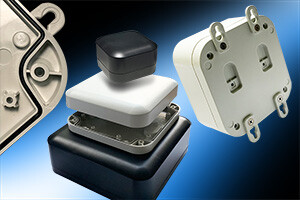

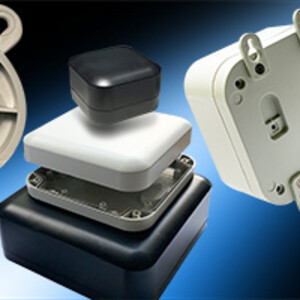

The polycarbonate 1557 family is available from Hammond Electronics in four plan sizes, each in two heights and sealed to IP68. The sizes are 80 x 80 x 45 mm and 60 x 120 x 120 mm, 160 x 160 mm and 200 x 200 mm in heights of 45 and 70 mm. All versions are available in black and RAL 7035 grey.

Rounded corners and top face give a smooth modern style, and environmental sealing allows the enclosures to protect the housed equipment against dust and water entry in dirty and damp environments. The 1557 can be used as a freestanding enclosure when fitted with the supplied feet, or it can be wall-mounted with either four visible fixings or two hidden ones. PCB standoffs are provided in both the lid and base. The enclosure is assembled with corrosion-resistant M4 stainless-steel machine screws, which are threaded into integral bushes for repetitive assembly and disassembly. The IP68 polycarbonate enclosures are also UV stabilised for outdoor use with a UL94-5VA rating.

For more information, click here.
