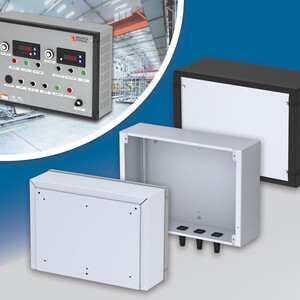

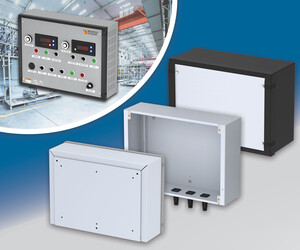

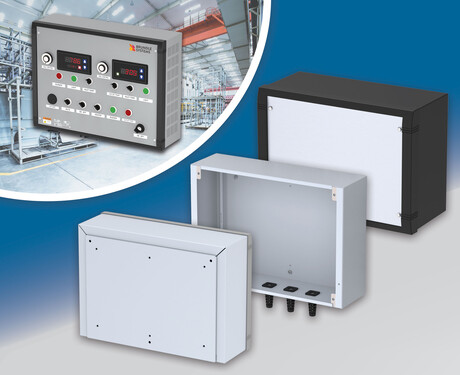

METCASE DATAMET wall mount enclosures

Click2Contact

The DATAMET wall mount enclosures from METCASE are suitable for the HMI electronics field, as well as for control and instrumentation applications.

These smart, modern aluminium enclosures are designed for factory processing, security, machine control, measurement and detection. They are a cost-effective alternative to METCASE’s premium TECHNOMET-CONTROL, which is designed for VESA mounting.

DATAMET offers complete access to the electronics during installation and servicing. First the L-section rear panel is attached to the wall; there are four pre-punched mounting points. Then the top section, front bezel and front panel (accessory) are added. All the fixings are supplied with the case.

The rear section includes holes for installing PCBs and internal mounting plates. The front panel is recessed in the diecast front bezel to protect controls. Inside, there are four M4 earth studs.

DATAMET can be specified in three sizes: S (250 x 180 x 116.5 mm), M (350 x 250 x 116.5 mm) and L (400 x 300 x 116.5 mm). There are two standard colour schemes: light grey/window grey (RAL 7035/RAL 7040) and black (RAL 9005). Custom colours are also available on request.

Accessories include front panels, mounting plates, a PCB mounting kit and PCB/panel fixing screws.

METCASE can supply DATAMET fully customised. Services include bespoke sizes, custom front panels, machining, fixings and inserts, painting and finishing, and photo-quality digital printing of legends, logos and graphics.

For more information: https://www.metcase.com.au/en/Metal-Enclosures/Datamet.htm.
