Advantech AIR-020R Edge AI inference system

Click2Contact

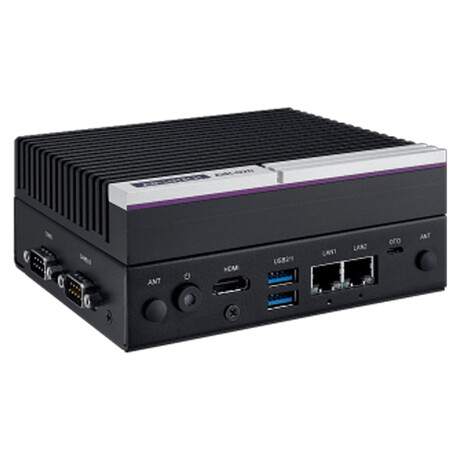

Advantech has launched the AIR-020R, an ultra-compact, fanless Edge AI inference system powered by the NVIDIA Jetson Orin Nano Super Mode, delivering up to 67 TOPS of AI computing performance. Designed for industrial vision AI — including defect inspection, robotics and traffic monitoring — the device offers seamless integration with Advantech’s 2D USB camera for streamlined deployment.

Equipped with an NVIDIA Ampere GPU (1024 CUDA cores, 32 Tensor Cores) and a six-core Arm Cortex-A78AE CPU, the device runs deep learning models for object detection, OCR, defect analysis and visual anomaly inspection. Supporting NVIDIA JetPack 6.2 and Advantech Edge AI Suite, it allows developers to deploy pre-trained AI models from frameworks like PyTorch or ONNX, optimised via TensorRT for low-latency, real-time inference.

The AIR-020R also features a rugged IP40-rated enclosure, fanless thermal design and a –10~50°C operating range. It supports 12–24 VDC input and resists up to 3 Grms vibration, enabling stable performance in harsh factory environments.

For flexible integration, the device includes 2× Gigabit Ethernet, 3× USB 3.2 (2 Type-A, 1 Type-C), 2× RS-232/422/485, 1× CAN bus, 8-bit DIO and 1× HDMI (4K@30Hz). It comes with 128 GB M.2 NVMe storage preloaded with JetPack 6.2 and offers miniPCIe with Nano SIM for wireless expansion, making it a ready-to-deploy AI vision solution for next-generation industrial automation.
