Light-based processors set to advance machine learning


Thursday, 01 April, 2021

Light-based processors set to advance machine learning

With data traffic growing at an exponential rate, the demands on computing power for applications in artificial intelligence often exceed the capacities of conventional computer processors. Working together with an international team, researchers at the University of Münster are developing new approaches and process architectures that can cope with these tasks extremely efficiently.

The researchers have now shown that so-called photonic processors, with which data is processed by means of light, can process information much more rapidly and in parallel — something electronic chips are incapable of doing. Their work has been published in the journal Nature.

Light-based processors for speeding up tasks in the field of machine learning enable complex mathematical tasks to be processed at enormously fast speeds (10¹²–10¹⁵ operations per second); conventional chips such as graphic cards or specialised hardware like Google’s TPU are based on electronic data transfer and are much slower. The research team, led by Professor Wolfram Pernice from the University of Münster, implemented a hardware accelerator for so-called matrix multiplications, which represent the main processing load in the computation of neural networks. Neural networks are a series of algorithms which simulate the human brain, which is helpful, for example, for classifying objects in images and for speech recognition.

The researchers combined the photonic structures with phase-change materials (PCMs) — usually used in optical data storage — as energy-efficient storage elements. In the new processor, this makes it possible to store and preserve the matrix elements without the need for an energy supply. To carry out matrix multiplications on multiple data sets in parallel, the Münster physicists used a chip-based frequency comb as a light source. A frequency comb provides a variety of optical wavelengths which are processed independently of one another in the same photonic chip. This enables highly parallel data processing by calculating on all wavelengths simultaneously — also known as wavelength multiplexing.

“Our study is the first one to apply frequency combs in the field of artificially neural networks,” said Prof Pernice.

The physicists used a so-called convolutional neural network for the recognition of handwritten numbers. These networks are a concept in the field of machine learning inspired by biological processes. They are used primarily in the processing of image or audio data, as they currently achieve the highest accuracies of classification.

“The convolutional operation between input data and one or more filters — which can be a highlighting of edges in a photo, for example — can be transferred very well to our matrix architecture,” said lead author Johannes Feldmann, from the University of Münster. “Exploiting light for signal transference enables the processor to perform parallel data processing through wavelength multiplexing, which leads to a higher computing density and many matrix multiplications being carried out in just one timestep.

“In contrast to traditional electronics, which usually work in the low GHz range, optical modulation speeds can be achieved with speeds up to the 50 to 100 GHz range,” he continued. This means that the process permits data rates and computing densities, ie, operations per area of processor, never previously attained.

The results have a wide range of applications. In the field of artificial intelligence, for example, more data can be processed simultaneously while saving energy. The use of larger neural networks allows more accurate, and hitherto unattainable, forecasts and more precise data analysis. For example, photonic processors support the evaluation of large quantities of data in medical diagnoses, for instance in high-resolution 3D data produced in special imaging methods. Further applications are in the fields of self-driving vehicles, which depend on fast, rapid evaluation of sensor data, and of IT infrastructures such as cloud computing which provide storage space, computing power or applications software.

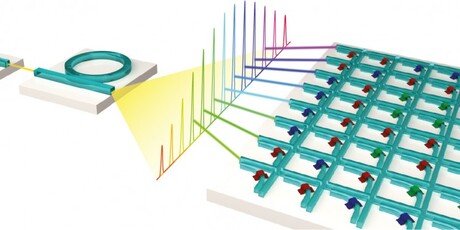

Image caption: Schematic representation of a processor for matrix multiplications that runs on light. Together with an optical frequency comb, the waveguide crossbar array permits highly parallel data processing. Image ©WWU/AG Pernice.
