Terahertz imaging shines light on new solar cell material
Scientists from the US Department of Energy’s Ames National Laboratory have developed a characterisation tool that allowed them to gain insights into a possible alternative material for solar cells. Under the leadership of Jigang Wang, senior scientist from Ames Lab, the team developed a microscope that uses terahertz waves to collect data on material samples. The team then used their microscope to explore methylammonium lead iodide (MAPbI3) perovskite, a material that could potentially replace silicon in solar cells.

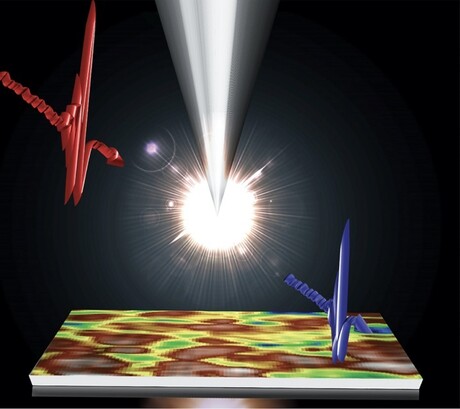

Richard Kim, a scientist from Ames Lab, said that two features make the new scanning probe microscope unique. First, the microscope uses the terahertz range of electromagnetic frequencies to collect data on materials. This range is below the visible light spectrum, falling between the infrared and microwave frequencies. Secondly, the terahertz light is shined through a sharp metallic tip that enhances the microscope’s capabilities towards nanometre-length scales.
“Normally if you have a light wave, you cannot see things smaller than the wavelength of the light you’re using. And for this terahertz light, the wavelength is about a millimetre, so it’s quite large. But here we used this sharp metallic tip with an apex that is sharpened to a 20-nanometre radius curvature, and this acts as our antenna to see things smaller than the wavelength that we were using,” Kim said.
Using this new microscope, the team investigated a perovskite material (MAPbI3) that has recently become of interest to scientists as an alternative to silicon in solar cells. Perovskites are a type of semiconductor that transports an electrical charge when it is exposed to visible light. The main challenge to using MAPbI3 in solar cells is that it degrades easily when exposed to elements like heat and moisture. According to researchers, the team expected MAPbI3 to behave like an insulator when they exposed it to the terahertz light. Since the data collected on a sample is a reading of how the light scatters when the material is exposed to the terahertz waves, the researchers expected a consistent low-level light-scatter throughout the material. What they found, however, was that there was a lot of variation in light scattering along the boundary between the grains.
According to the researchers, conductive materials, like metals, would have a high level of light scattering while less conductive materials, like insulators, would not have as much. The variation of light scattering detected along the grain boundaries in MAPbI3 sheds light on the material’s degradation problem. Over the course of a week, researchers continued to collect data on the material, and data collected in that time showed the degradation process through changes in the levels of light scatterings. This information can help improve and manipulate the material in the future.
“We believe that the present study demonstrates a powerful microscopy tool to visualise, understand and potentially mitigate grain boundary degradation, defect traps, and materials degradation. Better understanding of these issues may enable developing highly efficient perovskite-based photovoltaic devices for many years to come,” Wang said.
The research findings were published in the ACS Photonics journal.
