Graphene-based solar cells power temperature sensors

Researchers at the University of Arkansas and the University of Michigan have reported the use of ultralow-power temperature sensors using graphene-based solar cells. The test is the first hurdle in developing autonomous sensor systems that draw power from multiple sources in the environment — solar, thermal, acoustic, kinetic, nonlinear and ambient radiation.

The end goal is development of multi-modal sensors (incorporating more than one of the above power sources) using the energy-harvesting capability of graphene that can last decades and helps realise the ‘Internet of Things’, in which smart technology is woven into the fabric of daily life.

Ashaduzzaman, a PhD candidate in physics, is first author on the U of A-led paper, but graphene energy harvesters are the brainchild of physics professor Paul Thibado, who began studying graphene’s unique properties more than a decade ago and is the corresponding author.

Success depended on overcoming two challenges: reducing sensor power demand to nanowatts, a billionth of a watt, as opposed to the current standard, which is measured in microwatts (a millionth of a watt), and powering the sensor using energy harvested from the local environment.

Notably, this system and those expected to follow do not include batteries, which have a limited lifespan, allowing graphene-based energy harvesters to achieve long operational lifetimes — potentially decades.

“Power has to be drawn from the local environment, so it’s self-powered and autonomous, and it has to have an extremely long operational lifetime to dramatically reduce the total cost of ownership. So set it and forget it,” Thibado said.

The U of A team was largely responsible for completing the second challenge above, while the University of Michigan team, led by David Blaauw, a professor of electrical engineering and computer science, was largely responsible for the first. Blaauw is an expert in low-power wireless sensors and embedded systems. He has even designed tiny sensors that can be planted in the wings of a butterfly.

The paper confirms it’s possible to create an ultra-low-power temperature sensor using graphene-based solar energy.

“We thought if we could remove the power management unit, maybe this sensor system would take an even smaller amount of power, so that is what we did. Then we connected three sets of solar cells to power the temperature systems directly with three storage capacitors,” Ashaduzzaman said.

Thibado added, “We anticipate building devices that harvest multiple sources of energy within that device.”

By making them ‘multi-modal’, intermittent shortages in solar power can be augmented with additional thermal or non-linear power, whatever the case may be.

Thibado foresees the sensors being used in areas and fields where sensors would be useful, but the need to replace batteries would make them labour- and cost-prohibitive. This could include use in things like agricultural climate monitoring, tracking livestock, wearable fitness monitoring, building alarm systems, predictive maintenance and a range of other applications.

The paper was published in the Journal of Vacuum Science and Technology B. Ashaduzzaman said the next step is to perfect a kinetic energy harvester that harvests energy from the unique vibrational qualities of graphene. This capability will then be joined with the solar sensor, creating a multi-modal sensor. At least, that is the plan.

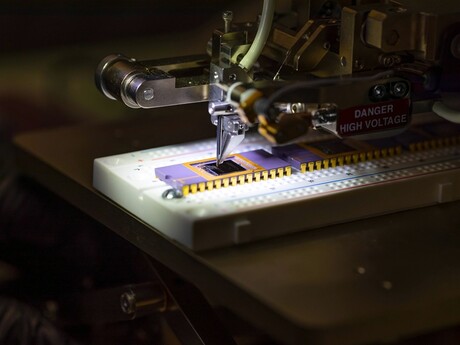

Image caption: Soldering a graphene-based sensor. Image credit: Russell Cothren, University Relations.
