HYDAC EDS 1700 electronic pressure switch

Click2Contact

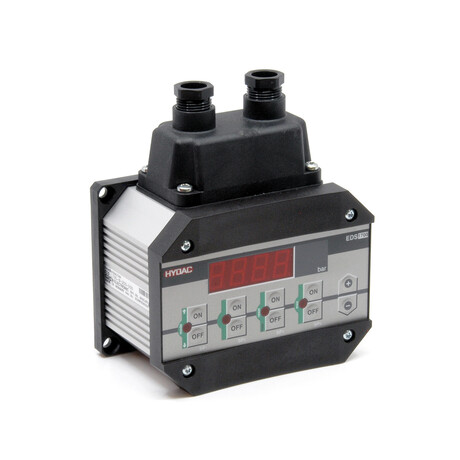

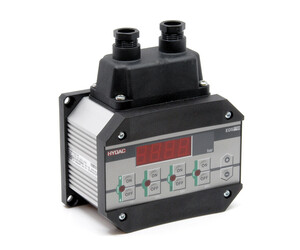

The HYDAC EDS 1700 is a high-performance electronic pressure switch designed for precise operation in hydraulic and pneumatic applications. Featuring an integrated pressure measurement cell, a clear four-digit display and four independent switching outputs, it allows operators to control and monitor system pressure. Each switching and switch-back point can be set independently via the intuitive keypad, making adjustments quick and easy while reducing downtime.

For enhanced system integration, the electronic pressure switch offers a selectable analog output in either 4–20 mA or 0–10 V, enabling direct connection to PLCs and monitoring systems. Built with an integrated strain-gauge sensor on a stainless steel membrane, the unit delivers measurement accuracy between 0.5% and 1% of full scale, enabling stable and repeatable performance over millions of switching cycles.

The pressure connection and display/keypad module can be rotated through 180°, allowing for top or bottom mounting to suit different installation layouts. The display can also be configured to show pressure readings in bar, psi, or alternative units such as kN or kg, catering to a range of applications.

Users can also set relay functions as normally open or normally closed, program switch-on and switch-off delays from 0 to 90 s, apply hysteresis and view peak pressure values. For additional security, programming menus can be hidden to prevent unauthorised changes.

The HYDAC EDS 1700 is an innovative solution for critical pressure monitoring and control. Whether in fixed industrial systems or high-cycle operations, it is designed to provide the precision and functionality needed to keep processes running smoothly.
