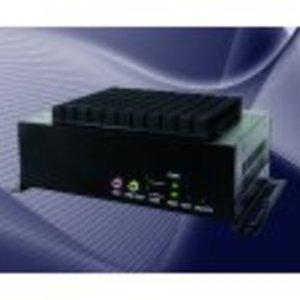

iBase CSB100-891 fanless embedded system
iBase's Atom N450 processor-based CSB100-891 fanless embedded system features 2 GB of DDR2 system memory and 160 GB 2.5″ SATA HDD storage.
With an aluminium and steel construction, the chassis is suitable as a desktop or wall-mounted unit. It is supplied with a 100-240 VAC 60 W power adapter with a 12 VDC output. Expansion is offered via 1x Compact Flash II socket and 1x mini-PCIe slot to accommodate an optional Wi-Fi module.
The front panel has LED indicating power and HDD operation, buttons for reset and power on/off, 2x audio jacks and 2x USB ports. The rear I/O panel features 2x USB ports, 2x RJ45, 3x serial ports, a VGA connector, DC jack and a reserved hole for optional Wi-Fi antenna connection.
Featuring low power consumption, the device offers good graphics performance and is suitable for multimedia applications such as POS/kiosk, digital signage, automation and other low-noise, fanless embedded applications.
