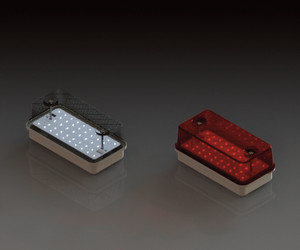

Marl 084 Series LED Bulkhead

Click2Contact

Marl’s 084 Series LED Bulkhead features robust housing that supports a multicluster of high-intensity, sunlight-readable LED elements and integral circuitry designed to facilitate operation at a range of voltage options.

The bulkhead features voltage input of 24 VAC/DC, 110 VAC/DC and 230 VAC. The polycarbonate lens provides good wide-angle viewing for signals and indicator illumination. It has an operating temperature of -40 to +85°C and a life expectancy of 90,000 h (10 years).

The high-intensity LEDs are available in red, amber, green, blue and cool white. Wall or pole mounting options are available. Benefits include high optical performance, vibration resistance, vandal resistance and low heat generation.

The unit is sealed to IP67, making it suitable for outdoor use and harsh environments. The rail-approved version of the bulkhead includes two individual LED circuits.

The product is suitable for a wide variety of applications, including perimeter lighting, security lighting, path lighting, architectural lighting, driveway lighting, industrial lighting, construction lighting, stair lighting and tunnel lighting, as well as rail ‘end of line’ buffer stop lighting and rail barrow crossing indication (rail-approved version).
