Electronic ribbon can monitor health, infrastructure

Researchers are developing flexible, bendable, even stretchable electronics for a wide range of potentially game-changing applications. This includes applications in harsh environments for aircraft, explosive devices and even combatants themselves.

“Basically, we are using a hybrid technology that mixes traditional electronics with flexible, high-performance electronics and new 3D printing technologies,” said Benjamin J Leever, PhD, from the Air Force Research Laboratory at Wright-Patterson Air Force Base.

“In some cases, we incorporate ‘inks’, which are based on metals, polymers and organic materials, to tie the system together electronically. With our technology, we can take a razor-thin silicon integrated circuit, a few hundred nanometres thick, and place it on a flexible, bendable or even foldable, plastic-like substrate material,” he said.

To allow electronics to be bendable or stretchable or even change their configuration after fabrication, the Wright-Patterson team has turned to liquid gallium alloys as an electrical interconnect material, Leever said.

“While these liquid alloys typically oxidise within minutes and become essentially useless, the team has been able to dramatically reduce the effects of the oxidation through the use of ionic species confined to the walls of microvascular channels within the flexible substrates.”

The result is thin, foldable material that allows the circuitry to fit into extremely tight spaces and even to be integrated into complex curved surfaces, such as an airplane’s wing, or even a person’s skin.

In aircraft applications, the hybrid flexible system can be used to monitor stresses and strains and report this information through miniature embedded antennas to ground crews or a pilot, explained Leever.

The researchers are also developing the same approach to monitor pilots’ health. This involves a biosensor system that can measure heartbeat, hydration levels, sweat, temperature and other vital signs through miniature circuitry. The system would be embedded on a flexible, wearable patch and would include an antenna to transmit these biometric signals to the pilot or a ground team. The patch will ‘breathe’, bend and stretch, and will provide real-time measurements of metrics that indicate fatigue or potential cognitive problems, Leever said.

Another military application the Air Force is pursuing is use of a flexible hybrid system in ‘bunker buster’ bombs, which detonate after penetrating deep in the earth. Because of the system’s toughness, said Leever, initial testing suggests that the flexible circuitry would remain viable and could detonate the weapon after surviving the initial impact of ground contact after being dropped from aircraft.

In the civilian world, Leever foresees use of flexible systems to monitor the conditions of bridges and other types of infrastructure in real time. He also points to medical applications, such as physical feedback for athletes as they exercise and real-time hospital monitoring for caregivers concerned about changes in a patient’s vital signs. This type of monitoring dispenses with the need for the bulky electrodes and wiring that normally are associated with close medical surveillance.

“Overall, the military has the advantage of being able to move ahead with potentially higher risk research,” he explained.

“Commercial investors want a clear demonstration before making an investment. The military can pursue possibly transformational applications at earlier stages if we see a promising approach to realise and advance a technology’s revolutionary potential. When we are successful, the commercial sector directly benefits.”

Leever added that the Wright-Patterson team is part of a newly created Department of Defense-led Flexible Hybrid Electronics Manufacturing Innovation Institute, which was announced by President Barack Obama last December. Over the next five years, $75 million will be offered in matching grants to spur domestic development of flexible hybrid electronics manufacturing.

Researchers will provide an update on the latest technologies, as well as future research plans, at the 250th National Meeting & Exposition of the American Chemical Society (ACS) to be held in Boston on Thursday 20 August.

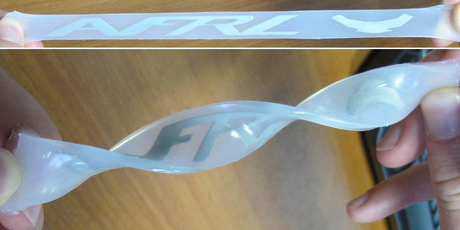

Image caption: Stretchy, bendable electronics could have many uses, such as monitoring patients’ health and keeping tabs on airplanes. Credit: Benjamin Leever, PhD.
