Boring into the surface of Mars

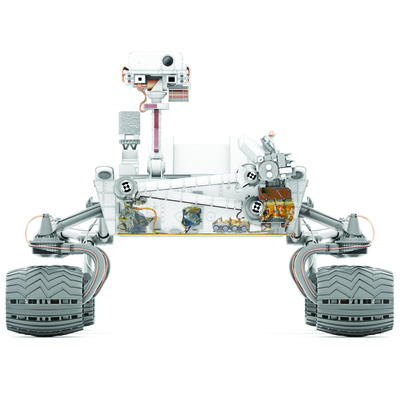

Since its landing on Mars last August, NASA JPL’s rover had yet to utilise its drilling arm to full capacity. However, that all changed in February 2013 when the Mars Rover Curiosity officially bored its first hole into the Martian surface.

Seen as the rover’s most complex device, the robotic drilling arm penetrated what is identified as a “flat, veiny rock” to collect its first samples. This collection marks the first sampling of any rover on Mars.

Helping to ensure the success of this drilling mission, Futek Advanced Sensor Technology designed and developed two customised sensors.

Within the drill sits a thru-hole load cell Futek manufactured to measure the forces of the drill bit as it bores into the Martian terrain. Meanwhile, a multi-axial sensor sits at the base of the rover’s robotic arm, monitoring the arm’s manoeuvres.

This three-component sensor provides feedback to the operating device identifying the levels of torsion and force applied to the arm. These precision instruments led to a 16 mm wide and 63 mm deep hole in the Martian bedrock. This particular location showed evidence of water/moisture saturation.

Futek awaits Curiosity’s analysis of the rock sample over the next few days to confirm this theory. Ground controllers will guide Curiosity through multiple stages of investigation within the rover’s Collection and Handling for In-Situ Martian Rock Analysis (CHIMRA) device.

Futek Advanced Technology is represented in Australia and New Zealand by Metromatics.
