Self-assembling sensors could improve wearable devices

By Sarah Small, Penn State University
Thursday, 04 July, 2024

Self-assembling sensors could improve wearable devices

To advance soft robotics, skin-integrated electronics and biomedical devices, researchers at Penn State have developed a 3D-printed material that is soft and stretchable — traits needed for matching the properties of tissues and organs — and that self-assembles. Their approach employs a process that eliminates many drawbacks of previous fabrication methods, such as less conductivity or device failure, the team said.

They published their results in Advanced Materials.

“People have been developing soft and stretchable conductors for almost a decade, but the conductivity is not usually very high,” said corresponding author Tao Zhou, Penn State assistant professor of engineering science and mechanics and of biomedical engineering in the College of Engineering, and of materials science and engineering in the College of Earth and Mineral Sciences. “Researchers realised they could reach high conductivity with liquid metal-based conductors, but the significant limitation of that is that it requires a secondary method to activate the material before it can reach a high conductivity.”

Liquid metal-based stretchable conductors suffer from inherent complexity and challenges posed by the post-fabrication activation process, the researchers said. The secondary activation methods include stretching, compressing, shear friction, mechanical sintering and laser activation, all of which can lead to challenges in fabrication and can cause the liquid metal to leak, resulting in device failure.

The researchers 3D print the novel material. Image credit: Marzia Momin.

“Our method does not require any secondary activation to make the material conductive,” said Zhou, who also has affiliations with the Huck Institutes of the Life Sciences and the Materials Research Institute. “The material can self-assemble to make its bottom surface be very conductive and its top surface self-insulated.”

In the new method, the researchers combine liquid metal, a conductive polymer mixture called PEDOT:PSS and hydrophilic polyurethane that enables the liquid metal to transform into particles. When the composite soft material is printed and heated, the liquid metal particles on its bottom surface self-assemble into a conductive pathway. The particles in the top layer are exposed to an oxygen-rich environment and oxidise, forming an insulated top layer. The conductive layer is critical for conveying information to the sensor — such as muscle activity recordings and strain sensing on the body — while the insulated layer helps prevent signal leakage that could lead to less accurate data collection.

The new material, shown here, can self-assemble to make its bottom surface conductive and its top surface self-insulated. Image credit: Marzia Momin.

“Our innovation here is a materials one,” Zhou said. “Normally, when liquid metal mixes with polymers, they are not conductive and require secondary activation to achieve conductivity. But these three components allow for the self-assembly that produces the high conductivity of soft and stretchable material without a secondary activation method.

“The material can also be 3D-printed,” Zhou said, making it easier to fabricate wearable devices. The researchers are continuing to explore potential applications, with a focus on assistive technology for people with disabilities.

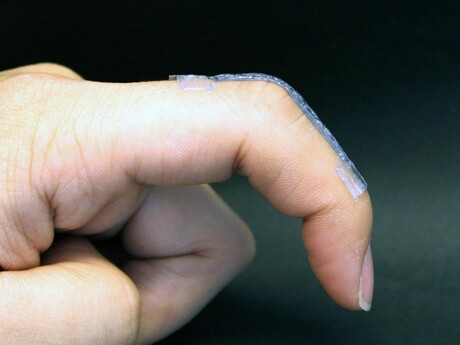

Top image caption: Penn State researchers developed a new soft and stretchable material that can be 3D-printed. The material can be used to fabricate wearable devices, such a sensor that can be worn on a finger, as shown here. Image credit: Marzia Momin.
